Durable RC Drill Bit Custom Color For Complicated Gravel Formation

Name: Durable RC Drill Bit Custom Color For Complicated Gravel Formation
Brand: Super Diamond
Price: 1 USD

Brand Name : Super Diamond

Model Number : RE542

Certification : ISO

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : According to order quantity

Delivery Time : 5-8 work days

Packaging Details : Fixed plastic mold + carton + wooden box

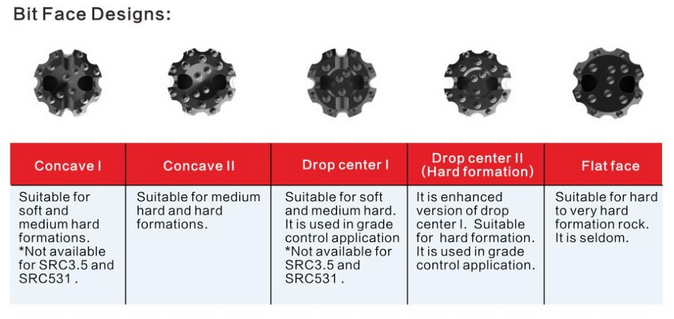

Face : Concave RC bit

Material : Alloy Steel &Tungsten Carbide, Alloy steel

Processing Type : Forging

Use : Coal/Ore Mining, Well Drilling

Application : Coal Mining,Quarry drilling,DTH drilling

Advantage : Designed The Hardness

Technology : Precise Heat Treatment Processing

Machine Type : Drilling Tool

Color : Required

Standard : ISO-9001,API

Contact Now

RE545 Reverse Circulation Drill Bits

RC reverse circulation drilling tools are mainly used for geological exploration drilling .RC drilling is slower and costlier but achieves better penetration than RAB or air core drilling; it is cheaper than diamond coring and is thus preferred for most mineral exploration work.

RC hammers and bits are used in hole drilling in mines, hydrology and water well, geothermal well, geothermal air conditioning well, geologic exploration, complicated gravel stratum, etc

Especial suitable for complicated formation (Formation loose, difficult to drilling and unstable of hole wall), exhausting for deep hole, environment protection.

Reverse circulation (RC) drilling uses a bit attached to a down-hole hammer to produce a hole. Unlike diamond drilling, RC drilling produces samples of rock cuttings rather than a sample of rock core. The down-hole hammer is powered by compressed air, which also acts as the medium bringing the drill cuttings up to surface. It is mainly used in deep hole exploration and mining ore grade control.

Reverse Ciculation Drill Bits	Head shape	Diameter(mm)	Number of vents	NO X button diamter
Reverse Ciculation Drill Bits	Head shape	Diameter(mm)	Number of vents	Toothed	Gauge	Toothed
PR52	Center Drop Bit	133	2	Round Button+ Round Button	8XØ16	8XØ14
	Center Drop Bit	137	2	Round Button+ Round Button	8XØ16	6XØ16+3XØ14
	Center Drop Bit	140	2	Round Button+ Round Button	8XØ16	6XØ16+3XØ14
PR54	Center Drop Bit	140	2	Round Button+ Round Button	8XØ16	6XØ16+2XØ14
PR54	Center Drop Bit	143	2	Round Button+ Round Button	8XØ16	6XØ16+3XØ14
RE542	Center Drop Bit	115	2	Round Button+ Round Button	8XØ14	6XØ14
	Center Drop Bit	121	2	Round Button+ Round Button	8XØ14	6XØ14
	Center Drop Bit	127	2	Round Button+ Round Button	8XØ14	6XØ14

Product specifications: RE542 RC Bits

Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight(kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons	Button angle	Flusing holes	Shroud Dia mm	Weight(kgs)	Part No
121	4 3/4	8x14	6X16	35	2	119	10.6	RE542-121
124	4 7/8	8x14	8X13	35	2	122	10.8	RE542-124
127	5	8x14	8X14	35	2	125	11	RE542-127
130	5 1/8	8x14	10X14	35	2	128	11.3	RE542-130

Durable RC Drill Bit Custom Color For Complicated Gravel Formation
Shank can be available:
Specification:
1). 4'' RC Bits:Diameter (104mm-127mm); Shank type: RE004/RE004R;
RE542
2). 5'' RC Bits:Diameter(113mm-146mm) ; Shank type: RE543,RE545,RE547;PR40,PR52,PR54; MX5456
3). 6'' RC Bits: Diameter(152-190mm); Shank type: RC62/RC62R;
4). 8'' RC Bits: Diameter(190-250mm); Shank type: RC82/RC82R;
5). 10'' RC Bits: Diameter(250-370mm); Shank type: RC100/RC100R.
Other size can be upon to customer's requirements
We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc
